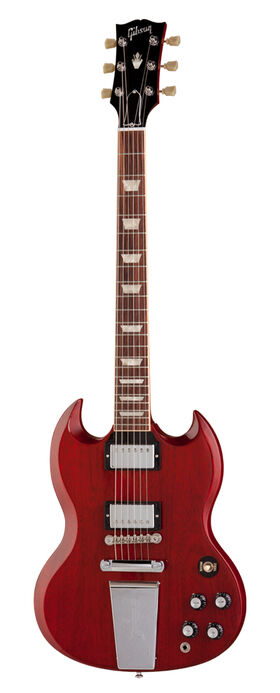

The Derek Trucks Signature SG was introduced for the 2012 model year as a recreation of Trucks' main guitar for about a decade, a 2000 '61 Reissue with the optional Maestro Vibrola, which he removed and had a stopbar tailpiece installed, while keeping the vibrola's frame and cover. He also removed the pickguard. It was reintroduced with minor changes for the 2014 model year.

Related:

2012 Edit

12 trucks
  • $1,199 - $1,699 Street (2012)

Body:

  • Beveled, solid Honduran Mahogany body
    • Grade A Mahogany
  • Nitrocellulose Lacquer finish

Neck:

  • 1-pc quartersawn Honduran Mahogany
  • Set-in construction
    • 5 degree angle
    • Franklin Titebond 50 glue
  • Joins body at 22nd fret
    • '61 style heel
  • Slim Taper profile (.800/.895")
    • D shape
  • Indian Rosewood fretboard
    • Acrylic trapezoid inlays
    • 12" radius
  • Large Open Book headstock
    • Resin impregnated fiberboard veneer
  • Inlaid Mother of Pearl Gibson logo
    • Classic font style
  • Inlaid Mother of Pearl crown
  • "Made in U.S.A." stamp
  • 17o headstock pitch
  • 22 frets
    • Leveled by Plek machine
  • 24 9/16" scale
  • Corian nut
    • Cut by Plek machine
  • 1 11/16" nut width

Binding:

  • Neck, single-ply
  • Thinner style
  • Fret-edge binding
12 trucks 2

Electronics:

  • Two '57 Classic Humbuckers
    • AlNiCo II magnets
    • ~7.9k Ohms D.C. resistance
  • 3-way switch
  • 2 Vol, 2 Tone
    • 500k pots

Hardware:

  • Nickel Hardware
  • Grover Kluson-style tuning machines
    • 14:1 ratio
    • Green Key buttons
  • Bell shaped truss rod cover
    • 2-ply b/w
    • Blank
  • Black Reflector knobs
  • Zamak ABR-1 Tune-O-Matic bridge
  • Zamak stopbar tailpiece
  • Maestro frame & cover

Finishes:

  • Heritage Cherry

2014 Edit

14 trucks
  • $1,899 - $2,399 Street (2014)
  • $2,039 - $2,399 Street (2015)
  • $1,299 Street (2016 Blowout)

Body:

  • Beveled, solid Honduran Mahogany body
    • Grade A Mahogany
  • Nitrocellulose Lacquer finish

Neck:

  • 1-pc quartersawn Honduran Mahogany
  • Set-in construction
    • 5 degree angle
    • Franklin Titebond 50 glue
  • Joins body at 22nd fret
    • '61 style heel
  • Slim Taper profile (.800/.895")
    • D shape
  • Indian Rosewood fretboard
    • Acrylic trapezoid inlays
    • 12" radius
  • Large Open Book headstock
    • Resin impregnated fiberboard veneer
  • Inlaid Mother of Pearl Gibson logo
    • Classic font style
  • Inlaid Mother of Pearl crown
  • "Made in U.S.A." stamp
  • 17o headstock pitch
  • 22 frets
    • Leveled by Plek machine
  • 24 9/16" scale
  • TekToid nut
    • Cut by Plek machine
  • 1 11/16" nut width

Binding:

  • Neck, single-ply
  • Thinner style
  • Fret-edge binding

Electronics:

  • Two '57 Classic Humbuckers
    • AlNiCo II magnets
    • ~7.9k Ohms D.C. resistance
  • 3-way switch
  • 2 Vol, 2 Tone
    • 500k pots

Hardware:

  • Nickel Hardware
  • TonePros Kluson tuning machines
    • 16:1 ratio
    • Green Key buttons
  • Bell shaped truss rod cover
    • 2-ply b/w
    • Trucks Signature
  • Black Reflector knobs
  • Zamak ABR-1 Tune-O-Matic bridge
  • Zamak stopbar tailpiece
  • Maestro frame & cover

Finishes:

  • Vintage Red Stain
