SG Wiki
20 hendrix

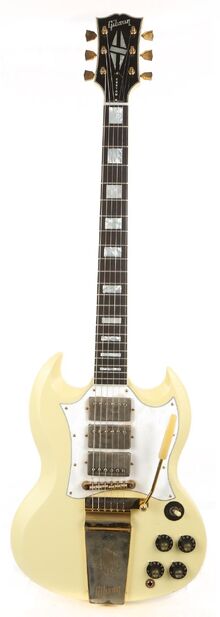

The Jimi Hendrix Signature 1967 SG Custom was introduced in late 2020. Despite the name, this model is not a dedicated reissue of a 1967 SG Custom, because it lacks the heel design used in 1967 and just has the same heel as the '63 Custom Reissue, as well as having a different nut width, different pickup magnets and other smaller discrepancies from a 1967. This was the first SG to use Gibson's '68 Custom pickups.

Also includes Hendrix™-branded Truss Rod Cover, Certificate of Authenticity, 5 Hendrix™ picks and limited edition 5"x7" archival print of Jimi Hendrix signed by engineer/producer Eddie Kramer.

Related:

Features[]

  • $9,999 Street

Body:

  • Solid Honduran Mahogany body
  • One-piece construction
  • Historic deep beveling
  • Angled heel
  • Tapered horn tips
  • Nitrocellulose Lacquer finish
    • Hand-aged by the "Murphy Lab"

Neck:

  • 1-pc quartersawn Honduran Mahogany
  • 1960 Slim Taper C profile (.835"/.955")
  • Set-in construction
    • Hot hide glue
    • Unsheathed truss rod
    • Joins body at 22nd fret
      20 hendrix 3
  • Ebony fretboard
    • Mother of Pearl block inlays
    • 12" radius
  • Medium Open Book headstock w/ Holly veneer
    • Inlaid Mother of Pearl Gibson logo
      • Classic font style
    • Inlaid Mother of Pearl split diamond
    • 17headstock pitch
  • 22 frets
    • Leveled by Plek machine
  • 24 5/8" scale
  • Nylon nut
    • 20 hendrix 4

      Certificate of Authenticity

      Cut by Plek machine
  • 1 11/16" nut width

Binding:

  • Single-ply, neck
    • Thicker style
    • Fret-edge binding
  • Multi-ply, headstock

Electronics:

  • Three '68 Custom humbuckers
    • AlNiCo II magnets
    • ~6.8k Ohms DCR
  • 3-way switch
  • 2 Vol, 2 Tone
    • CTS 500k audio taper pots
    • Ceramic capacitors

Hardware:

  • 20 hendrix 5
    Gold hardware
  • Kluson Waffleback tuning machines
    • 15:1 ratio
    • Metal Keystone buttons
  • 5-ply "Batwing" pickguard
    • Wide bevel angle
  • Bell shaped truss rod cover
    • 2-ply, thin bevel angle
    • "Custom" printing
  • Black/Gold Witch Hat knobs w/ pointers
  • ABR-1 Tune-O-Matic bridge
    • Nylon saddles
  • Maestro vibrola

Finishes:

  • Aged Polaris White
