SG Carved Top

The SG Carved Top was a limited run of 350 units produced in 2009 (likely 350 of each color, although Gibson did not specify). The design was based on the SG Diablo. Interestingly, each finish was unique for having a different fretboard material. Each guitar has an ink-stamped number out of 350 on the back of the headstock. Unlike most USA models, these include a certificate of authenticity. In 2012, the SG Diablo Premium Plus was released with similar specifications to this model, the biggest difference being a bound Slim Taper neck that joins the body at the 22nd fret. In 2016, the SG Supreme returned with similar specifications to this model, the biggest differences being a bound headstock and fretboard, Slim Taper neck, the fretboard inlays and the neck joining the body at the 22nd fret.

Related:

• SG Diablo Premium Plus
• SG Supreme

Features

• $4,442 MSRP
• $1,799 Street

Body:

• Solid Honduran Mahogany back
• AAA flame Maple carved top

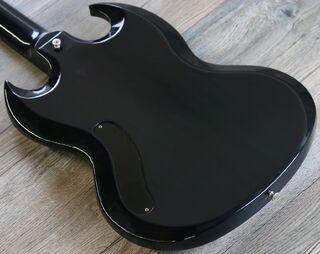

• Concave carved back
• Diablo style beveling
• Nitrocellulose Lacquer finish

Neck:

• 1-pc quartersawn Honduran Mahogany
• Set-in construction
  • 3 degree angle
  • Franklin Titebond 50 glue
  • Joins body at 19th fret
• '50s Rounded profile (.815" / .970")
• Ebony fretboard (Ocean Blue Burst)
  • Acrylic pearloid trapezoid inlays
  • 12" radius
• Indian Rosewood fretboard (Autumn Burst)
  • Acrylic pearloid trapezoid inlays
  • 12" radius
• Narrow Open Book headstock
  • Resin impregnated fiberboard veneer
  • Inlaid Mother of Pearl Gibson logo
    • Classic font style
  • Inlaid Mother of Pearl crown
  • "Made in U.S.A." stamp
  • 17^o pitch
• 24 medium-jumbo frets
• 24 ⁹/₁₆" scale



• Corian nut
  • Cut by Plek machine
• 1 11/16" nut width

Electronics:

• Two Burstbucker Pro humbuckers
  • AlNiCo V magnets
  • ~7.65k (neck) & 8.2k (bridge) Ohms DCR
• 3-way switch
• 1 Vol, 1 Tone
  • CTS pots
    • 300k volume
    • 500k tone

Hardware:

• Chrome hardware
• Grover Rotomatic tuning machines
  • 14:1 ratio
  • Manufactured by Ping
• Bell shaped truss rod cover
  • 2-ply b/w
• Black Bell knobs
• Zamak Nashville Tune-O-Matic bridge
• Zamak stopbar tailpiece

Finishes:

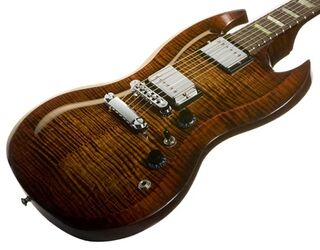

• Autumn Burst

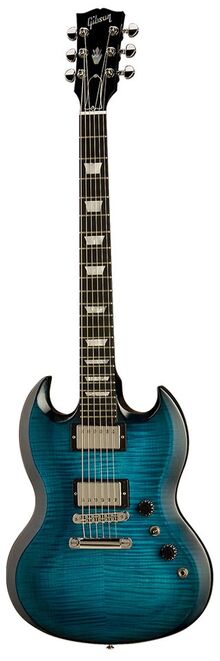

• Ocean Blue Burst
