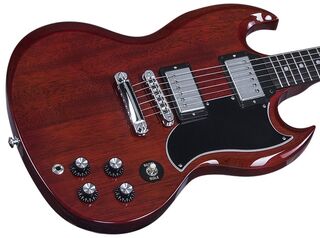

SG Xtra Slim

The SG Xtra Slim was a limited edition model produced only for the 2015 model year and was only sold in Canada and Europe. The name is a reference to its slim neck profile. Unlike most other models built in 2015, it has a narrower nut instead of a wider one. A similar neck profile and nut width can be found on the Angus Young Signature model. The Xtra Slim is based on the body design of the SG Special. Although promotional photos depicted an "SG" stamped truss rod cover, they were shipped to dealers with a blank truss rod cover.

Related:

• SG Special

Features

• $1,699 Street

Body:

• Beveled, solid Mahogany body
• Nitrocellulose Lacquer finish

Neck:

• 1-pc quartersawn Mahogany
• "Extra Slim Taper" profile (.775" / .850")
• Set-in construction
  • 3.5 degree angle
  • Franklin Titebond 50 glue
  • Joins body at 19th fret

• Indian Rosewood fretboard
  • Mother of Pearl dot inlays
  • 12" radius
• SP-1B Open Book headstock
  • Resin impregnated fiberboard veneer
  • Inlaid Mother of Pearl Gibson logo
  • Inlaid Mother of Pearl crown
  • "Made in U.S.A." stamp
  • 17^o pitch
• 22 frets
  • Leveled by Plek machine
• 24 ⁹/₁₆" scale
• Tektoid nut



  • Slots cut by Plek machine
• 1 9/16" nut width

Electronics:

• Two '57 Classic humbuckers
  • AlNiCo II magnets
  • ~7.9k Ohms D.C. resistance
• 3-way switch
• 2 Vol, 2 Tone
  • 500k non-linear
  • "Quick-Connect" circuit board

Hardware:

• Chrome Hardware
• TonePros "Kluson Deluxe" tuning machines
  • 15:1 ratio
  • Yellow Keystone buttons
• 5-ply "Angel Wing" pickguard
• Bell shaped truss rod cover
  • 2-ply black/white
  • "SG" hot stamp
• Black Reflector knobs
• Poly-carbonate control cover
  • Prevents electrostatic discharge
• Zamak Nashville Tune-O-Matic bridge
• Zamak stopbar tailpiece

Finishes:

• Heritage Cherry
